Storage-first off-grid power design helps water level monitoring equipment operate continuously across remote rivers, mountain bridges, and flood-warning sites in Chengde, HebeiDirect Answer:In March 2026, a Kongfar 80W40Ah solar power supply system was applied to a water level monitoring project in Chengde, Hebei. The system provides off-grid power for water level sensors and data transmission terminals, supporting stable operation under low temperature, snowmelt, rainfall, humidity, sediment exposure, and difficult maintenance conditions.
Project Background: Water Level Monitoring Power Challenges In Chengde River Infrastructure
Chengde, Hebei has many river channels, mountain bridges, and water conservancy monitoring points distributed across complex outdoor environments. These monitoring points are used for water level data collection, flood-warning response, river dispatching, and public safety management.
For this type of infrastructure, water level sensors and data transmission terminals must operate continuously. If the power supply is interrupted, monitoring data may become incomplete, flood-warning response may be delayed, and river management decisions may lose important field information.
Many water level monitoring points in Chengde are located along remote riverbanks, bridge sections, and mountain water conservancy sites. These locations are often far from municipal power, and grid connection can involve long cable routes, difficult construction, and higher maintenance costs.
Traditional battery-powered methods may work for short-term monitoring, but they are vulnerable in winter low temperature, spring snowmelt, summer rainstorms, and high-humidity river environments. Frequent battery replacement also increases field maintenance pressure and safety risks.
To improve power reliability for these scattered monitoring points, the project introduced a Kongfar 80W40Ah solar power supply system in March 2026. The system was designed to provide stable off-grid energy support for water level sensors and data transmission terminals under Chengde’s mountain river conditions.
Site Constraints Affecting Water Level Sensor Reliability In Mountain River Sites
Water level monitoring in Chengde is not only a sensor deployment task. The power system must support continuous operation while facing remote installation, seasonal weather variation, outdoor exposure, and difficult maintenance access.

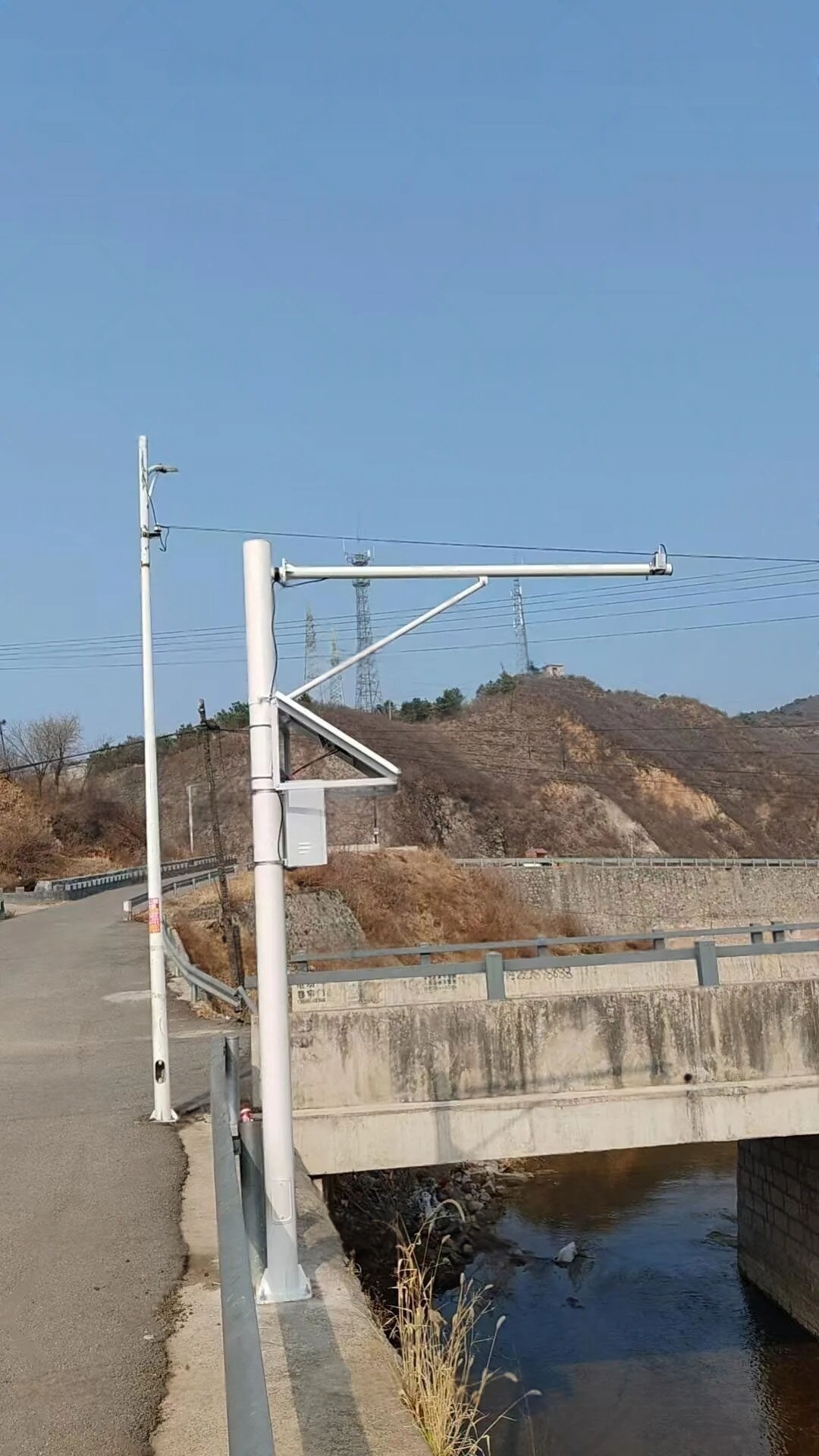

This bridge-side field installation shows the real deployment environment of a water conservancy monitoring point where remote access, outdoor exposure, river infrastructure, and maintenance difficulty directly affect solar power supply reliability.
Grid Access Limitations At Remote River And Bridge Monitoring Points
Many river and bridge monitoring points are located away from stable grid power. Extending cables to these locations may require riverbank work, bridge-side wiring, road-side construction, or mountain route access. These construction conditions can increase deployment cost and delay project implementation.
For flood-warning infrastructure, power interruption is not a minor inconvenience. A water level sensor may consume limited power, but it must remain online continuously. If power is lost during rainfall, snowmelt, or a fast-changing river condition, the monitoring system may miss important water level changes.
This is why an independent solar power supply system is valuable for remote water level monitoring. It reduces dependence on municipal power, avoids frequent battery replacement, and supports continuous data collection at locations where grid access is difficult.
Low Temperature, Snowmelt, Rainfall, Humidity, And Sediment Exposure
Chengde’s temperate monsoon climate and mountain river environment introduce several reliability risks for outdoor power equipment. Winter low temperature may reduce usable battery performance. Spring snowmelt and icing may increase moisture exposure around rivers and bridge locations. Summer rainstorms may bring water splash, mud, sediment, and high humidity.
If the power system lacks proper enclosure protection, rainwater and sediment may enter the battery or controller area. This can lead to corrosion, short-circuit risk, unstable output, and shorter service life.
For water conservancy monitoring, environmental protection is not only a box design issue. It directly affects power continuity. The system must combine battery protection, waterproof and dustproof enclosure design, wiring protection, and controller safety logic to remain stable in river infrastructure environments.
Maintenance Pressure Across Scattered Water Conservancy Sites
Water level monitoring points are often distributed along rivers, bridge sections, and mountain water conservancy locations. Manual inspection may require long travel time, complex road access, and safety preparation.
During rain, snow, icing, or flood-season conditions, field maintenance becomes more difficult. A power method that depends on frequent battery replacement is not suitable for long-term unattended operation.
The Chengde project therefore required a power solution that could reduce field visits, provide stable backup energy, and allow maintenance teams to check the system status remotely. Remote energy monitoring is especially valuable because it helps maintenance teams identify battery or photovoltaic abnormalities before the monitoring point shuts down.
Kongfar 80W40Ah Solar Power Supply Solution For Chengde Water Level Monitoring
The Chengde project adopted a Kongfar 80W40Ah solar power supply system to support water level sensors and data transmission terminals in remote river and mountain monitoring environments.
The solution integrates photovoltaic generation, battery storage, intelligent controller protection, waterproof and dustproof enclosure design, and mobile-side energy monitoring. This structure helps the monitoring equipment operate independently from municipal power while reducing manual maintenance pressure.
80W Solar Power Generation For Daytime Energy Recovery
The 80W photovoltaic module collects solar energy during daytime and converts it into charging input for the battery system. In Chengde’s river monitoring environment, the solar panel supports daily energy recovery during available sunlight windows.
The solar module is not only used to power equipment during daylight. Its more important role is to restore battery energy after night operation, cloudy weather, rainy periods, and low-generation conditions.
For this project, the solar power generation unit supports:
✅ Daytime photovoltaic charging
✅ Energy recovery for remote water level monitoring loads
✅ Operation at monitoring points without stable grid power
✅ Outdoor use under low temperature, snowmelt, rainfall, and sediment exposure
✅ Continuous energy support for riverbank, bridge-side, and mountain water conservancy sites
40Ah Battery Storage For Night And Low-Sunlight Operation
The 40Ah battery storage unit provides energy for night operation and low-generation periods. For water level monitoring, battery storage is a key reliability factor because the system must continue operating when solar input is unavailable or temporarily reduced.
The battery system supports operation during nighttime, cloudy weather, rainy conditions, and low-temperature periods. It also reduces the risk of monitoring interruption when maintenance teams cannot quickly reach the site.
The battery storage unit supports:
✅ 24-hour water level monitoring operation
✅ Nighttime power supply
✅ Backup energy during cloudy or rainy periods
✅ Reduced risk of water level data interruption
✅ More stable unattended operation for distributed river monitoring points
Intelligent Controller Protection For Outdoor Monitoring Loads
The solar power system includes an intelligent controller that manages photovoltaic charging, battery storage, and load output. In outdoor water conservancy monitoring, the controller is important because electrical risks can occur when the system faces temperature variation, moisture exposure, unstable charging, or unexpected load conditions.
The controller supports:
✅ Overcharge protection
✅ Over-discharge protection
✅ Short-circuit protection
✅ Load output control
✅ Battery status monitoring
✅ Photovoltaic charging status monitoring
✅ Abnormal status alerts through mobile-side monitoring
This control logic helps protect the battery and connected equipment while supporting stable output for water level monitoring devices.
Waterproof And Dustproof Enclosure For River Infrastructure Sites
The battery and controller are integrated into a waterproof and dustproof enclosure. This helps protect electrical components from rainwater, humidity, mud, sediment, and outdoor exposure.
For Chengde river infrastructure, enclosure protection is directly related to power reliability. Even if the solar panel and battery capacity are suitable, poor enclosure protection can still cause system failure through water ingress, corrosion, cable damage, or short circuit.
The enclosure design supports:
✅ Rainwater protection
✅ Dust and sediment resistance
✅ Battery and controller protection
✅ Safer cable and component integration
✅ Long-term outdoor use in river, bridge, and mountain monitoring environments
Remote Energy Monitoring For Unattended Water Level Stations
The system supports mobile-side viewing of photovoltaic power and battery status. When abnormal conditions occur, alerts can be pushed automatically.
This remote energy monitoring function helps maintenance teams check system conditions before field failure occurs. It also reduces unnecessary site visits, especially when monitoring points are scattered along river channels and mountain bridge sections.
For water conservancy monitoring, remote visibility turns the power system from a passive component into a manageable infrastructure node. Maintenance teams can make better decisions based on photovoltaic input, battery condition, and warning information instead of waiting for field equipment failure.
Storage-First Reliability Design For Remote Water Level Monitoring Power Systems
For remote water level monitoring, off-grid power reliability should not be evaluated by solar panel wattage alone. A larger photovoltaic module can improve charging speed, but it cannot solve all field reliability problems if battery storage, enclosure protection, and maintenance visibility are insufficient.
Kongfar applies a storage-first engineering logic:
Energy Reliability = Storage Autonomy × Environmental Protection × Solar Recovery Margin
This model is used as an engineering decision framework, not as a strict electrical calculation formula. It helps evaluate whether a solar power supply system can support connected monitoring equipment through night operation, low-generation periods, harsh outdoor exposure, and delayed maintenance access.
In this Chengde project, reliability depends on three connected factors:
✅ Storage Autonomy: whether the 40Ah battery can support continuous operation during night, cloudy weather, rainfall, and low-temperature periods
✅ Environmental Protection: whether the enclosure and electrical protection can resist rainwater, humidity, mud, sediment, icing, and outdoor exposure
✅ Solar Recovery Margin: whether the 80W solar panel can restore enough energy during available sunlight windows
This design logic is important for water level monitoring because the system must maintain data continuity during periods when field access may be difficult. If battery capacity is too small, if the enclosure is not protected, or if energy status cannot be monitored remotely, a monitoring point may still lose power even when a solar panel is installed.
How The 80W40Ah Solar Power System Supports 24-Hour Water Level Sensor Operation
The 80W40Ah solar power system supports water level monitoring through a coordinated off-grid power process.
During daytime, the 80W solar panel collects sunlight and sends charging input to the controller. The controller manages charging and protects the battery from overcharge. At night or during low-generation periods, the 40Ah battery supplies power to the water level sensor and data transmission terminal.
When photovoltaic input, battery status, or load output becomes abnormal, the remote monitoring function allows maintenance teams to check system data through the mobile side and respond earlier.
The basic operation logic includes:
✅ Solar panel collects energy during daytime
✅ Controller manages charging and battery protection
✅ Battery stores energy for night and low-sunlight periods
✅ Water level sensor and data transmission terminal receive stable power
✅ Mobile-side monitoring checks photovoltaic power and battery status
✅ Abnormal alerts help maintenance teams respond earlier
The system works because energy generation, storage autonomy, load control, and maintenance visibility are managed as one power architecture instead of separate components. This is important for remote water monitoring points where stable operation and lower maintenance frequency are required.
Engineering Decision Matrix For Water Level Monitoring Solar Power Reliability
The reliability of a water level monitoring solar power system depends on the interaction between load demand, storage capacity, outdoor protection, solar recovery, controller safety, remote monitoring, and maintenance access.
Engineering Variable
| Field Risk In Chengde Water Monitoring
| Design Response
| Reliability Role
|
Load Profile
| Water level sensors and data terminals require continuous power, but total system demand may be underestimated
| Calculate daily energy demand for all connected devices, including sensors, communication terminals, and control electronics
| Prevents hidden overload and undersizing
|
Storage Autonomy
| Night operation, cloudy weather, rainfall, and low temperature reduce available charging input
| Match battery capacity with 24-hour operation and backup requirements
| Maintains monitoring continuity during low-generation periods
|
Environmental Protection
| Rain, snowmelt, humidity, mud, and sediment may damage batteries, controllers, and wiring
| Use waterproof and dustproof enclosure design with protected cable routing
| Reduces outdoor failure risk
|
Solar Recovery Margin
| Short sunlight windows or rainy periods may slow battery recovery
| Match photovoltaic input with site sunlight, load demand, and expected recovery requirement
| Restores battery energy after deficit periods
|
Controller Protection
| Overcharge, over-discharge, or short circuit may affect system safety and service life
| Apply intelligent controller logic with load control and electrical protection
| Improves electrical safety and stable output
|
Remote Energy Monitoring
| Field teams may not detect battery or charging problems until equipment stops working
| Use mobile-side monitoring and abnormal alerts
| Supports earlier response and fewer unnecessary site visits
|
Maintenance Access
| River and mountain sites are difficult to inspect frequently, especially during rain or snow
| Design for unattended operation and remote status visibility
| Reduces field service pressure and safety risk
|
This matrix shows why the system should be designed as a complete off-grid power architecture rather than a simple combination of solar panel and battery. For water level monitoring, each reliability variable affects whether field data can remain continuous.
Boundary Conditions For Reliable Water Level Monitoring Solar Power Operation
The 80W40Ah solar power supply system can support remote water level monitoring when the connected load, environmental conditions, installation method, and maintenance interval remain within the intended design range.
System performance depends on:
✅ Adequate solar exposure at the installation site
✅ Connected load remaining within the system design rating
✅ Battery discharge limits being respected
✅ Enclosure sealing and cable protection being maintained
✅ Solar panel surface not being continuously blocked by dust, snow, shade, or site obstruction
✅ Secure mounting and stable solar orientation
✅ Maintenance teams responding to abnormal alerts when required
Configuration should be recalculated if:
✅ Additional devices are added to the system
✅ Load power increases
✅ Backup-day requirements become longer
✅ Site shading becomes more severe
✅ Temperature conditions exceed the battery design range
✅ Enclosure sealing is damaged
✅ Maintenance interval changes significantly
This boundary condition logic is important because one configuration should not be applied to every water monitoring project without load and site review. A reliable solar power supply system should be selected after confirming device power, voltage, runtime, site climate, backup days, and maintenance conditions.
Project Results: Stable Power, Stronger Outdoor Adaptability, And Lower Maintenance Pressure
The Chengde water level monitoring project improved field power support by replacing high-maintenance traditional battery supply with an integrated solar power supply system.
Improved Power Reliability For Continuous Water Level Data Collection
After deployment, the system supported 24-hour operation of the water level monitoring equipment.
According to the project application record, water level data collection remained complete during the implementation period. This helped reduce the previous risk of unstable power supply and data interruption at remote river monitoring points.
For flood-warning projects, continuous power supply is critical because water level data must remain available for real-time monitoring, warning response, and river dispatching.
Stronger Environmental Adaptability In Low Temperature And Rainy Conditions
The system was designed for Chengde’s mountain river environment, including winter low temperature, spring snowmelt, summer rainstorms, high humidity, mud, sediment, and icing conditions.
The wide-temperature battery design, waterproof and dustproof enclosure, and intelligent protection logic helped reduce failure risks caused by freezing, water exposure, over-discharge, short circuit, and outdoor corrosion.
According to the project application record, the system operated stably during the observed implementation period, supporting longer unattended operation in river, bridge, and mountain water conservancy monitoring sites.
Lower Maintenance Pressure Through Remote Energy Monitoring
Traditional battery-powered monitoring systems often require periodic field inspection and battery replacement. For scattered river and mountain bridge locations, each inspection can involve long travel time and safety risks during rain, snow, or icy road conditions.
The solar power supply system reduces dependence on manual battery replacement. Remote monitoring also allows maintenance teams to check photovoltaic power and battery status before sending personnel to the site.
This helps improve maintenance efficiency, reduce unnecessary field visits, and lower safety risks during difficult weather conditions.
Engineering Value For Water Conservancy Monitoring And Flood-Warning Infrastructure
The Chengde project shows how an 80W40Ah solar power supply system can support water conservancy monitoring where grid power is unavailable, outdoor conditions are complex, and maintenance access is difficult.
For water conservancy monitoring, stable off-grid power is not only an energy supply issue; it is part of the data continuity foundation for flood-warning infrastructure.
The solution addresses three practical engineering problems:
✅ Power Continuity: supports 24-hour operation of water level sensors and data transmission terminals
✅ Outdoor Reliability: improves protection against low temperature, rainwater, humidity, mud, sediment, and icing exposure
✅ Maintenance Efficiency: supports remote energy monitoring and reduces frequent manual inspection
This type of off-grid solar power solution can also be adapted to other water conservancy monitoring applications, including water level sensors, rain gauges, water quality monitoring devices, river telemetry terminals, reservoir monitoring systems, and flood-warning data collection points.
By using solar power, water conservancy projects can improve energy independence and reduce the operation burden of remote monitoring infrastructure. For mountain river regions, stable power supply also supports public safety by improving early-warning continuity and emergency response readiness.
Buyer FAQ About Solar Power Supply Systems For Water Level Monitoring Projects
Can A Solar Power Supply System Run Water Level Monitoring Equipment 24 Hours A Day?
Yes, a properly configured solar power supply system can support 24-hour water level monitoring when load power, battery capacity, solar charging input, and backup-day requirements are calculated together. A water level sensor may have relatively low power demand, but the complete system may also include a data transmission terminal, router, controller, or telemetry device. For continuous operation, engineers should calculate the total daily energy consumption rather than only checking the sensor wattage. Buyers should provide device voltage, total load power, daily runtime, backup-day target, site climate, and maintenance interval before selecting the system configuration.
Why Is Battery Storage More Important Than Panel Wattage In Remote Water Monitoring?
Battery storage is critical because water level monitoring equipment must operate at night and during low-generation weather when solar panels cannot provide enough direct energy. A larger panel can improve daytime charging, but it cannot prevent power interruption if the battery cannot support the load during night, rain, snowmelt, or cloudy periods. In mountain river environments, field maintenance may also be delayed by weather or road conditions. This is why storage autonomy should be reviewed before only increasing solar panel wattage. Reliable design starts from the required backup duration, then matches photovoltaic recovery and outdoor protection.
Is An 80W40Ah Solar Power System Suitable For Every Water Level Monitoring Project?
No, an 80W40Ah solar power system should not be treated as a universal configuration for every water level monitoring project. Its suitability depends on the actual load power, device voltage, daily runtime, required backup days, local sunlight conditions, temperature range, enclosure environment, and maintenance interval. A simple water level sensor may require less power, while a site with additional routers, telemetry terminals, cameras, or communication modules may require a larger battery or solar panel. Before final selection, the project team should confirm all connected devices and site conditions to avoid undersizing.
What Causes Power Failure In Remote Water Monitoring Systems?
Common power failure causes include undersized battery capacity, low-temperature battery performance decline, water ingress, sediment corrosion, poor solar recovery, load expansion, and delayed maintenance access. In river monitoring environments, the power system is exposed to rain, humidity, mud, snowmelt, and sometimes icing. If the enclosure is not properly protected, electrical components may fail even when the battery and solar panel are correctly sized. Another common risk is adding extra devices after installation without recalculating energy demand. A reliable system should combine load analysis, battery autonomy, enclosure protection, controller safety, and remote energy monitoring.
What Information Should Buyers Provide Before Solar Power System Sizing?
Buyers should provide the connected device list, total load power, device input voltage, daily runtime, required backup days, site location, seasonal climate conditions, installation method, and maintenance interval. For water level monitoring projects, it is also useful to confirm whether the system includes only sensors or also data transmission terminals, routers, telemetry equipment, or cameras. This information helps engineers calculate daily energy demand, battery capacity, solar recovery margin, and enclosure protection requirements. Without these details, a configuration may look suitable on paper but fail under real field conditions.
How Does Remote Energy Monitoring Reduce Maintenance Pressure For Water Conservancy Sites?
Remote energy monitoring reduces maintenance pressure by allowing teams to check photovoltaic power, battery status, and abnormal system conditions before field failure occurs. Water level monitoring sites are often scattered along rivers, bridge sections, and mountain roads, where manual inspection can be time-consuming and risky during rain, snow, or flood-season conditions. With mobile-side monitoring and alerts, maintenance teams can identify battery or charging problems earlier and decide whether a site visit is necessary. This improves response efficiency and reduces unnecessary inspections for distributed water conservancy monitoring points.
Related Water Conservancy Solar Power Solutions And Remote Monitoring Engineering References
The Chengde water level monitoring project belongs to a broader group of water conservancy and remote monitoring applications where grid power is difficult to access, field equipment must operate continuously, and maintenance access may be limited by weather, terrain, or flood-season conditions. These related engineering references help project buyers compare solar power supply systems across water level monitoring, rainfall monitoring, flood warning, water quality monitoring, and river surveillance applications.
Core Related Engineering References
Why This Reference Is Related:River water level monitoring requires continuous sensor operation, stable data transmission, humidity protection, and backup energy during rainy or low-sunlight periods. It is closely related to the Chengde project because both applications depend on uninterrupted data collection for flood-warning and river management.
Engineering Connection:Both applications rely on storage autonomy, outdoor enclosure protection, solar recovery margin, and remote maintenance visibility under remote water conservancy conditions.
Useful For:Water conservancy departments, hydrology monitoring contractors, system integrators, flood-warning infrastructure teams, and government project buyers.
Why This Reference Is Related:Rain gauge stations are often deployed across distributed outdoor locations where grid power is unavailable and maintenance access may become difficult during storm seasons. Like water level monitoring points, they require stable low-power operation and reliable data transmission during adverse weather.
Engineering Connection:Both rain gauge and water level monitoring systems require battery backup, weather-resistant protection, solar recovery capability, and remote status visibility for continuous field data collection.
Useful For:Meteorological monitoring teams, water conservancy bureaus, environmental monitoring contractors, smart hydrology project teams, and IoT system integrators.
Why This Reference Is Related:Flood warning projects often combine water level sensors, rainfall monitoring devices, telemetry terminals, and sometimes visual monitoring equipment across multiple remote sites. These systems must continue operating during rainstorms, cloudy weather, and emergency response periods.
Engineering Connection:The shared reliability requirement is data continuity during adverse weather, low-generation periods, and difficult maintenance access. Storage autonomy, solar recovery margin, enclosure protection, and remote monitoring all affect flood-warning power reliability.
Useful For:Flood-control project teams, emergency management contractors, hydrology system integrators, smart water infrastructure buyers, and government water resource departments.
Extended Water Infrastructure Applications
Why This Reference Is Related:Water quality monitoring equipment is usually deployed near rivers, reservoirs, water treatment sites, or ecological monitoring areas where humidity, corrosion risk, and unattended operation affect power reliability. These sites often share similar environmental stress with water level monitoring points.
Engineering Connection:Both water quality and water level monitoring require stable DC output, waterproof and dustproof protection, battery backup, and storage-first solar power design for continuous field data collection.
Useful For:Environmental monitoring companies, water treatment operators, ecological monitoring teams, river basin management projects, and smart water infrastructure contractors.
Why This Reference Is Related:River and reservoir monitoring may require video surveillance in addition to water level or telemetry data collection. These sites often face the same grid access limitations, humidity exposure, outdoor installation constraints, and maintenance difficulty as water level monitoring projects.
Engineering Connection:The shared design priority is continuous off-grid operation through storage autonomy, solar recovery, outdoor protection, load calculation, and remote energy monitoring.
Useful For:Reservoir management teams, river security contractors, water conservancy departments, remote CCTV system integrators, and infrastructure monitoring project buyers.
Engineering Summary: Why Storage-First Solar Power Design Matters For Water Level Monitoring
Reliable off-grid power for water level monitoring should begin with storage autonomy, then match solar recovery, environmental protection, controller safety, and maintenance access according to actual field conditions. For Chengde river infrastructure, the Kongfar 80W40Ah solar power supply system demonstrates how storage-first power design can support continuous sensor operation under low temperature, snowmelt, rainfall, humidity, sediment exposure, and scattered maintenance conditions.
This project also shows that water conservancy monitoring power should not be evaluated only by photovoltaic panel wattage. Long-term reliability depends on load calculation, battery backup duration, outdoor enclosure protection, solar recovery capacity, and remote energy visibility working together as one system.
Engineering & Procurement Contact For Water Level Monitoring Solar Power Systems
Water level monitoring power systems should not be selected only by solar panel wattage. A reliable configuration needs load calculation, battery autonomy review, outdoor protection assessment, solar recovery evaluation, and maintenance access planning.
For water conservancy monitoring projects, Kongfar can support engineering consultation for:
✅ Water level sensor and data terminal load calculation
✅ Backup-day modeling for flood-warning continuity
✅ Solar recovery assessment for rainy, cloudy, or low-temperature periods
✅ River humidity, sediment, and enclosure protection strategy
✅ Remote energy monitoring design for scattered river stations
✅ Custom solar power supply configuration for unattended monitoring points
Project buyers can prepare the following information before consultation:
✅ Connected device list
✅ Total load power
✅ Device input voltage
✅ Daily runtime requirement
✅ Required backup days
✅ Site location
✅ Seasonal climate conditions
✅ Installation method
✅ Maintenance interval
✅ Remote monitoring requirement
Email:tony@kongfar.com
Website:https://www.kongfar.comKongfar provides engineering-focused solar power supply systems for water conservancy monitoring, river infrastructure, flood warning, remote CCTV, outdoor IoT, telecom, agriculture, and unattended field monitoring applications.
English
Deutsch
