Storage-first hybrid power design helps irrigation valve equipment operate continuously across remote farmland, windy spring conditions, rainy periods, and grid-limited agricultural sites in ShandongDirect Answer:On April 12, 2026, a Kongfar wind-solar hybrid power supply system with 600W solar panels, a 300W wind generator, and 400Ah battery storage was applied to an irrigation valve project in Shandong. The system supports 24-hour valve operation under low temperature, wind, dust, high heat, rainfall, and scattered farmland maintenance conditions.
Project Background: Irrigation Valve Power Challenges In Shandong Smart Agriculture
Shandong farmland irrigation valves are key control points in smart agriculture and water-saving irrigation systems. These valves help regulate field irrigation, support crop water management, and improve irrigation scheduling efficiency across distributed agricultural areas.
For irrigation valve control, stable power is critical. If the power supply is interrupted, valves may fail to open or close on schedule, irrigation tasks may be delayed, and crop growth may be affected during important watering periods.
Many irrigation valve points are located across wide farmland areas where municipal power access is limited or costly. Cable routing can be difficult, and traditional battery replacement can create long-term maintenance pressure.
Single solar power systems may also face seasonal limitations. In Shandong, winter low temperature, spring wind and dust, continuous cloudy or rainy weather, and summer high temperatures can affect energy recovery and equipment reliability.
To improve power continuity for distributed irrigation valve equipment, the project introduced a Kongfar 600W solar + 300W wind + 400Ah battery storage wind-solar hybrid power supply system on April 12, 2026. The system was designed to provide all-weather clean energy support for smart agriculture irrigation valve control in grid-limited farmland environments.
Site Constraints Affecting Irrigation Valve Reliability In Distributed Farmland Sites
Irrigation valve power supply in Shandong is not only an energy supply issue. The system must support valve control reliability while facing wide-area deployment, seasonal wind, dust exposure, low-temperature operation, high summer heat, and difficult field maintenance.

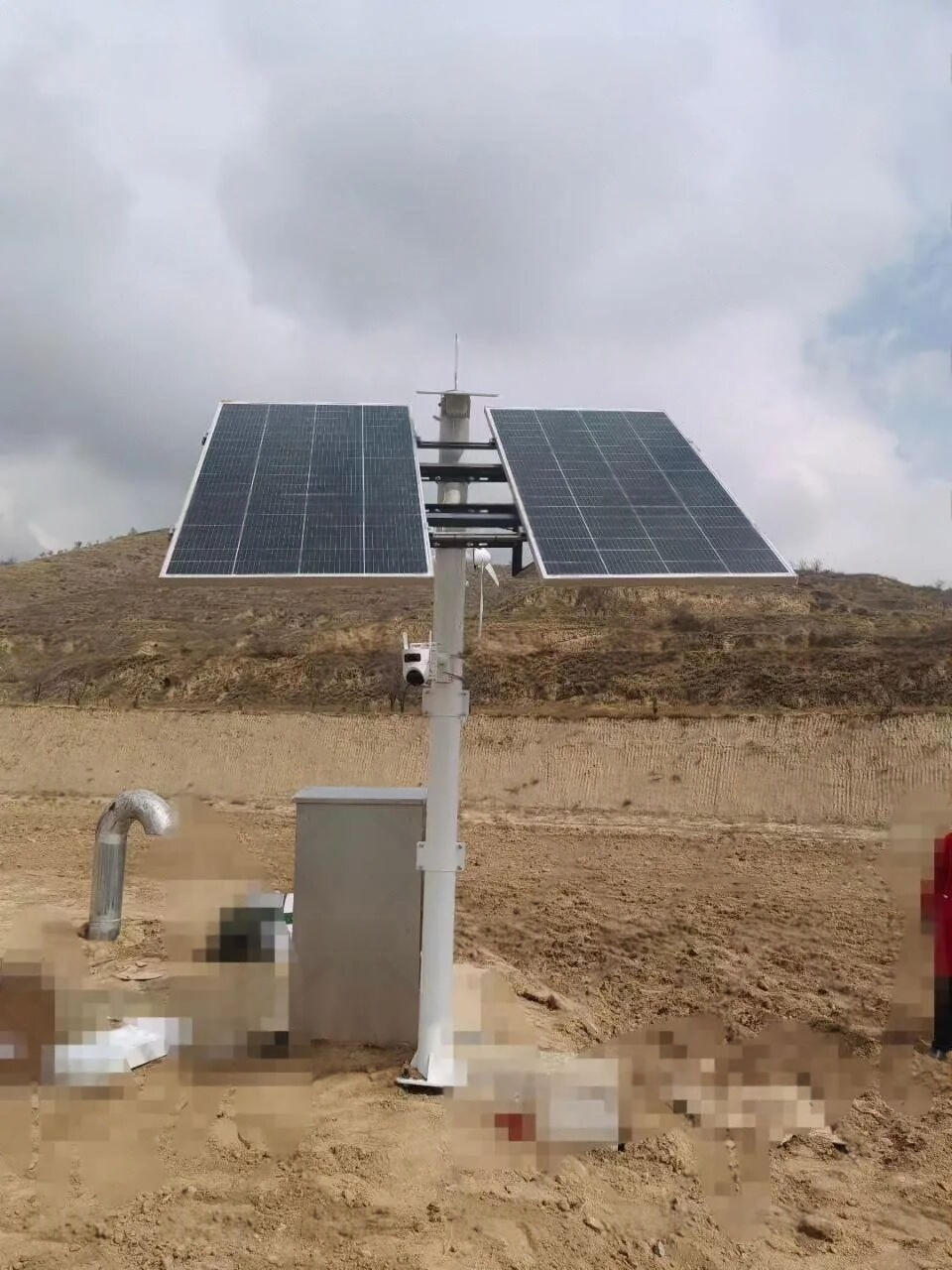

Wind-solar hybrid power installation in distributed farmland showing how outdoor exposure, grid limitations, and remote maintenance access affect irrigation valve power reliability.
Grid Access Limitations Across Remote Farmland Irrigation Points
Many irrigation valve points are installed across large farmland areas where stable municipal power is unavailable or difficult to extend. Supplying electricity through long cable routes can increase installation cost, field disturbance, and maintenance complexity.
For smart irrigation systems, power interruption can directly affect valve control. If a valve cannot open or close on time, irrigation scheduling may become inaccurate, water distribution may be delayed, and crop water management may be affected.
This is why an independent off-grid power system is valuable for remote farmland irrigation valves. It reduces dependence on grid wiring, supports distributed valve control, and helps maintain irrigation continuity in areas where traditional power infrastructure is limited.
Wind, Dust, Low Temperature, Rainfall, And High-Temperature Stress
Shandong has a temperate monsoon climate with strong seasonal variation. Spring conditions may include wind and dust. Summer may bring high temperatures and rainfall. Winter low temperature can reduce battery performance and affect outdoor electrical equipment.
Farmland environments also introduce dust, soil particles, moisture, and temperature differences between day and night. These factors can affect photovoltaic surfaces, wind generator components, battery storage, controller protection, wiring, and enclosure reliability.
For irrigation valve control, environmental protection must be treated as part of the power system design. A reliable system should combine wind and solar energy recovery, wide-temperature battery storage, waterproof and dustproof enclosure protection, and controller safety logic.
Maintenance Pressure Across Scattered Irrigation Valve Locations
Irrigation valves are often distributed across wide farmland areas. Manual inspection can require significant travel time, labor input, and coordination with irrigation schedules.
If a traditional battery-powered system fails, maintenance teams may need to visit individual valve points one by one. During rainy periods, high heat, or busy farming seasons, this can increase operation pressure and delay problem response.
The Shandong project therefore required a power solution that could reduce field visits, support unattended operation, and allow maintenance teams to monitor system status remotely. Remote visibility is especially important for distributed farmland infrastructure because early warning can reduce unexpected irrigation interruption.
Kongfar 600W Solar 300W Wind 400Ah Battery Power Supply Solution For Shandong Irrigation Valves
The Shandong project adopted a Kongfar wind-solar hybrid power supply system combining 600W photovoltaic generation, a 300W wind generator, and 400Ah battery storage to support smart agriculture irrigation valve equipment.
The system integrates solar generation, wind generation, battery storage, intelligent controller protection, waterproof and dustproof enclosure design, and mobile-side remote monitoring. This architecture helps irrigation valve equipment operate independently from grid power while reducing manual maintenance pressure.

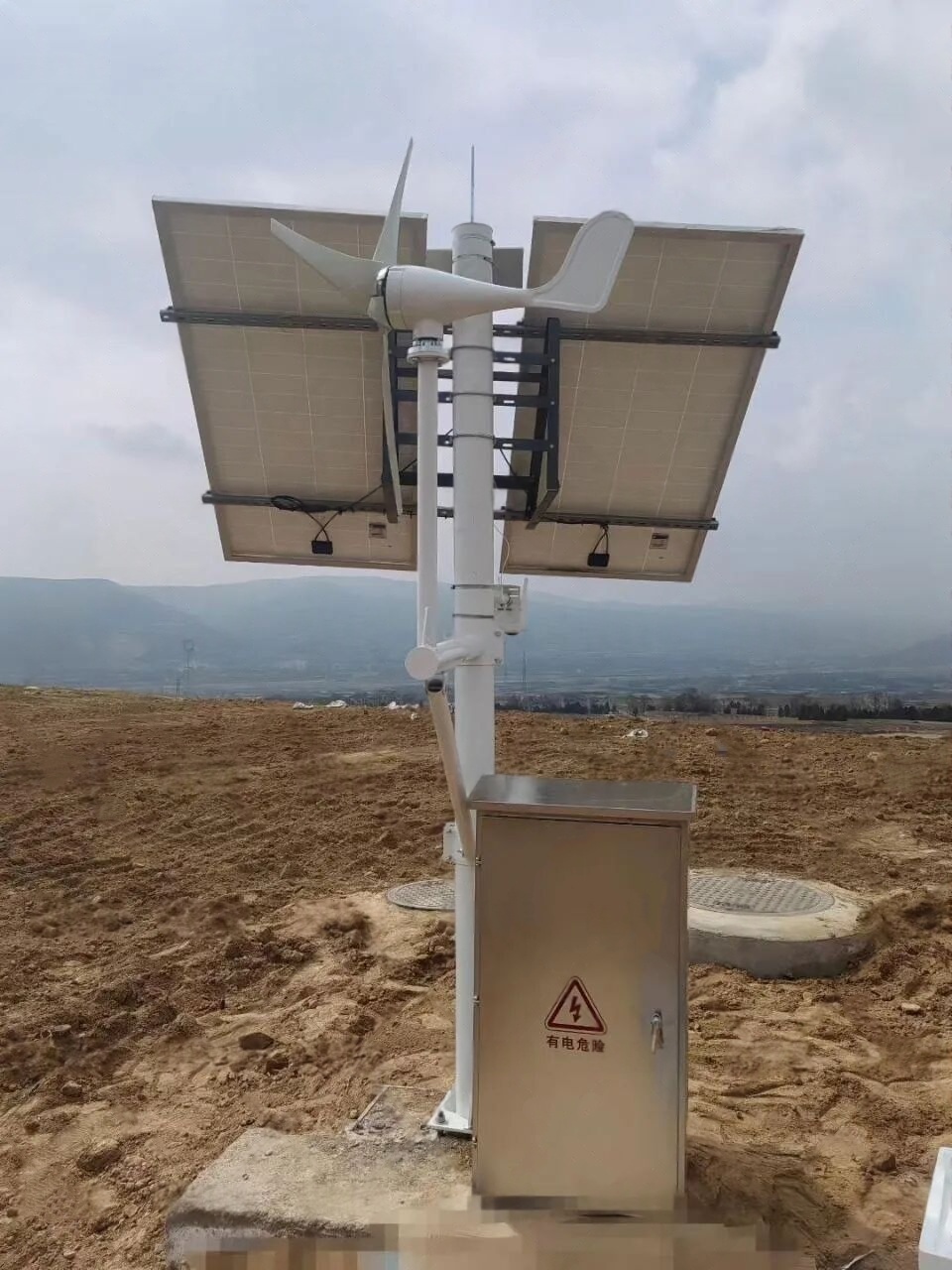

Integrated wind-solar hybrid power system showing photovoltaic generation, wind recovery, and protected power equipment for irrigation valve control in smart agriculture sites.
600W Solar Power Generation For Daytime Energy Recovery
The 600W photovoltaic module collects solar energy during daytime and converts it into charging input for the storage system. In Shandong farmland environments, solar generation supports energy recovery during sunny periods and helps maintain stable operation for irrigation valve control equipment.
The solar module is especially useful during clear weather and high-irradiance periods. Its role is not only to support daytime loads, but also to restore battery energy after night operation, cloudy periods, or valve operation cycles.
For this project, the solar generation unit supports:
✅ Daytime photovoltaic charging
✅ Energy recovery for irrigation valve control equipment
✅ Operation at farmland points without stable grid power
✅ Outdoor use under dust, temperature variation, and seasonal weather exposure
✅ Continuous energy support for distributed smart agriculture irrigation sites
300W Wind Generation For Low-Sunlight And Nighttime Recovery Support
The 300W wind generator adds a second recovery source to the system. This is important in Shandong farmland environments where spring wind conditions and weak-light periods may reduce the reliability of single-source solar supply.
Wind generation can support energy recovery during periods when sunlight is limited, including cloudy days, rainy weather, and nighttime wind conditions. This helps reduce dependence on solar energy alone and improves the system’s ability to recover battery energy under variable weather.
The wind generation unit supports:
✅ Energy recovery during windy conditions
✅ Supplementary charging during low-sunlight periods
✅ Nighttime or cloudy-weather power recovery potential
✅ Improved resilience compared with single photovoltaic supply
✅ Better suitability for farmland sites affected by seasonal wind and weather changes
400Ah Battery Storage For 24-Hour Irrigation Valve Operation
The 400Ah battery storage unit provides energy for night operation, low-generation periods, and irrigation valve control when wind or solar input is temporarily insufficient.
For irrigation valve systems, battery storage is a key reliability factor because valve operation must remain available according to irrigation schedules. If storage is undersized, valve control may fail during continuous cloudy weather, low wind periods, or cold-weather battery performance decline.
The battery storage unit supports:
✅ 24-hour irrigation valve power supply
✅ Backup energy during cloudy or rainy periods
✅ Energy continuity when wind and solar recovery are temporarily limited
✅ Reduced risk of irrigation scheduling interruption
✅ More stable unattended operation across distributed farmland valve points
Intelligent Controller Protection For Hybrid Energy Management
The system includes an intelligent controller that manages photovoltaic charging, wind generation input, battery storage, and load output. In a hybrid wind-solar system, controller logic is important because multiple energy sources must be coordinated safely and efficiently.
The controller supports:
✅ Solar charging management
✅ Wind generation input coordination
✅ Battery charge and discharge protection
✅ Overcharge protection
✅ Over-discharge protection
✅ Short-circuit protection
✅ Load output control
✅ Photovoltaic power and equipment operation monitoring
✅ Abnormal status alerts through mobile-side monitoring
This control logic helps protect the battery and connected irrigation valve equipment while supporting stable output under variable wind, sunlight, and farmland operating conditions.
Waterproof And Dustproof Enclosure For Farmland Power Equipment
The battery and controller are integrated into a waterproof and dustproof enclosure. This helps protect key electrical components from dust, rainwater, soil particles, moisture, and outdoor temperature variation.
For Shandong farmland applications, enclosure protection is directly related to long-term reliability. Even when solar panel capacity, wind generation, and battery storage are suitable, poor enclosure protection can still cause system failure through dust intrusion, corrosion, moisture exposure, wiring damage, or short circuit.
The enclosure design supports:
✅ Rainwater protection
✅ Dust and soil particle resistance
✅ Battery and controller protection
✅ Safer cable and component integration
✅ Long-term outdoor use in farmland irrigation environments
Remote Energy Monitoring For Unattended Smart Agriculture Sites
The system supports mobile-side viewing of photovoltaic power and equipment operation status. When abnormal conditions occur, alerts can be pushed automatically.
This remote monitoring function helps maintenance teams check system conditions before field failure occurs. It also reduces unnecessary site visits, especially when irrigation valve points are scattered across wide farmland areas.
For smart agriculture, remote visibility turns the power system from a passive energy source into a manageable field infrastructure node. Maintenance teams can monitor power recovery, battery condition, and operation warnings instead of waiting for irrigation failure to appear in the field.
Storage-First Reliability Design For Wind-Solar Hybrid Irrigation Valve Power Systems
For smart agriculture irrigation valve control, power reliability should not be evaluated by solar panel wattage or wind generator capacity alone. A larger photovoltaic module or wind turbine can improve energy recovery, but it cannot solve all field reliability problems if battery storage, environmental protection, and remote maintenance visibility are insufficient.
Kongfar applies a storage-first engineering logic:
Energy Reliability = Storage Autonomy × Environmental Protection × Solar Recovery Margin
This model is used as an engineering decision framework, not as a strict electrical calculation formula. In a wind-solar hybrid project, recovery margin is strengthened by both photovoltaic generation and wind generation, but storage autonomy still determines whether irrigation valve equipment can continue operating during low-generation periods.
In this Shandong project, reliability depends on three connected factors:
✅ Storage Autonomy: whether the 400Ah battery can support irrigation valve operation during night, cloudy weather, rainy periods, low wind periods, and low-temperature conditions
✅ Environmental Protection: whether the enclosure and electrical protection can resist dust, rainwater, temperature variation, high heat, and outdoor farmland exposure
✅ Recovery Margin: whether 600W solar generation and 300W wind generation can restore enough battery energy during available sunlight and wind windows
This design logic is important for irrigation valve control because the system must support stable operation during periods when field access may be difficult. If storage capacity is too small, if the enclosure is not protected, or if system status cannot be monitored remotely, a valve point may still lose power even when both solar and wind equipment are installed.
How The 600W Solar 300W Wind 400Ah Battery System Supports 24-Hour Irrigation Valve Operation
The 600W solar, 300W wind, and 400Ah battery system supports irrigation valve operation through a coordinated hybrid power process.
During sunny periods, the 600W photovoltaic module provides charging input to the storage system. During windy conditions, the 300W wind generator provides supplementary charging, including during weak-light or nighttime periods when wind is available. The controller coordinates solar input, wind input, battery charging, battery protection, and load output.
When solar or wind generation is temporarily limited, the 400Ah battery supplies power to the irrigation valve equipment and control devices. When photovoltaic input, wind generation, battery status, or load output becomes abnormal, mobile-side monitoring helps maintenance teams respond earlier.
The basic operation logic includes:
✅ Solar generation restores energy during daytime
✅ Wind generation supplements recovery during windy or weak-light periods
✅ Controller manages hybrid energy input and battery protection
✅ Battery stores energy for night and low-generation periods
✅ Irrigation valve equipment receives stable power for control operation
✅ Mobile-side monitoring checks photovoltaic power and operating status
✅ Abnormal alerts help maintenance teams respond before field interruption occurs

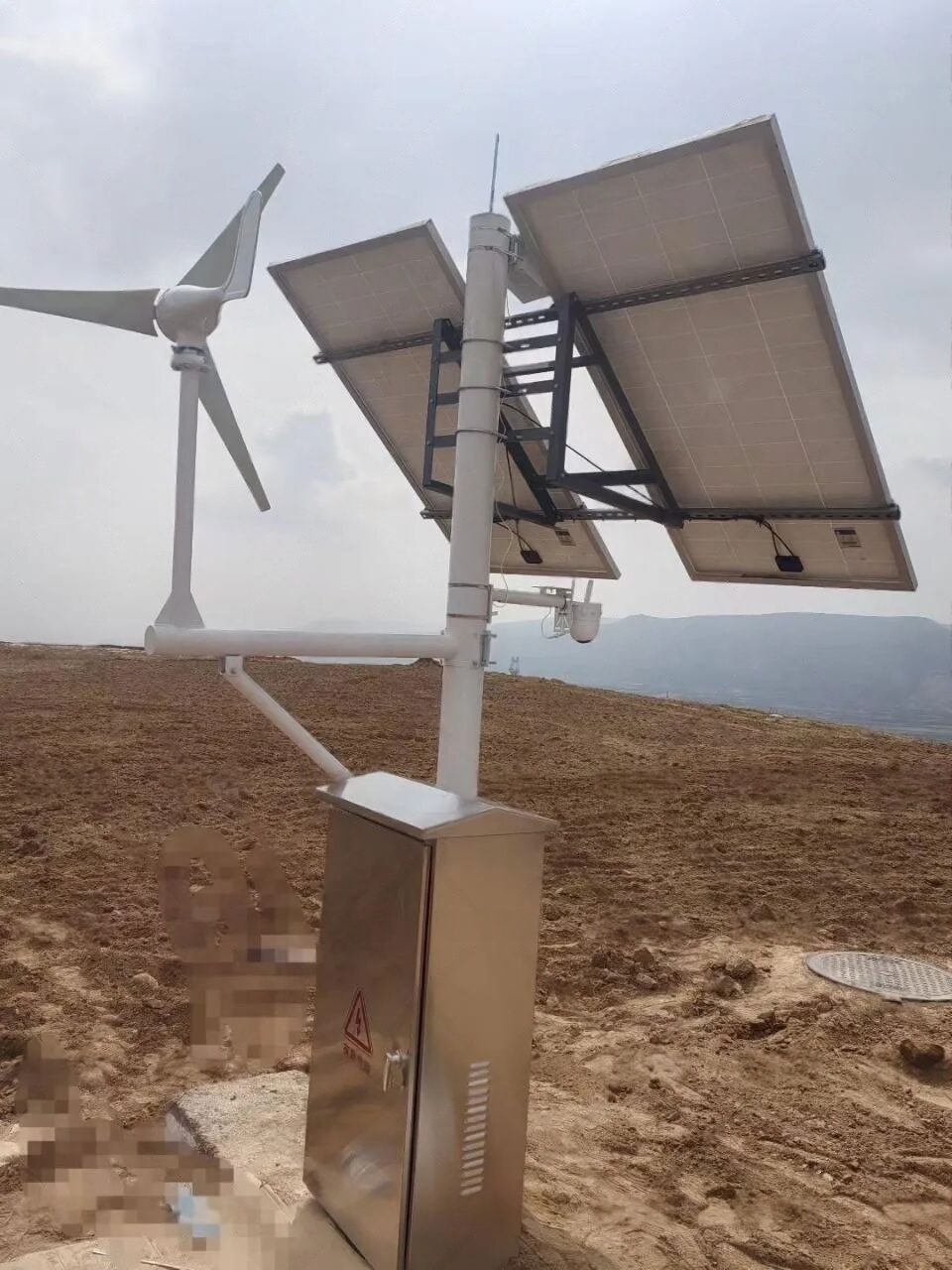

Side installation view of the wind-solar hybrid power system showing how structural support, hybrid energy recovery, and protected equipment placement support 24-hour irrigation valve operation.
The system works because energy generation, storage autonomy, load control, and maintenance visibility are managed as one hybrid power architecture instead of separate components. This is important for distributed farmland irrigation points where stable operation and lower maintenance frequency are required.
Engineering Decision Matrix For Irrigation Valve Hybrid Power Reliability
The reliability of an irrigation valve hybrid power system depends on the interaction between valve load demand, storage capacity, solar and wind recovery, outdoor protection, controller safety, remote monitoring, and maintenance access.
Engineering Variable
| Field Risk In Shandong Irrigation Valve Projects
| Design Response
| Reliability Role
|
Load Profile
| Irrigation valves and control devices require stable power, but total demand may be underestimated
| Calculate daily energy demand for valves, controllers, communication modules, and monitoring devices
| Prevents hidden overload and configuration mismatch
|
Storage Autonomy
| Night operation, low sunlight, low wind, rainfall, and low temperature reduce available charging input
| Match 400Ah battery storage with 24-hour operation and backup requirements
| Maintains irrigation valve continuity during low-generation periods
|
Solar Recovery Margin
| Cloudy or rainy periods may reduce photovoltaic recovery
| Use 600W solar generation to restore battery energy during available sunlight windows
| Supports daytime energy recovery
|
Wind Recovery Support
| Single solar supply may be limited during weak-light periods or seasonal weather changes
| Use 300W wind generation to supplement recovery during windy or low-sunlight conditions
| Improves hybrid recovery resilience
|
Environmental Protection
| Dust, wind, rain, high heat, and low temperature may damage batteries, controllers, and wiring
| Use waterproof and dustproof enclosure design with protected components
| Reduces outdoor failure risk
|
Controller Protection
| Hybrid energy input, overcharge, over-discharge, or short circuit may affect system safety
| Apply intelligent controller logic for charge management, load control, and protection
| Improves electrical safety and output stability
|
Remote Maintenance Access
| Field teams may not detect charging or battery problems until irrigation control is affected
| Use mobile-side monitoring and abnormal alerts
| Supports earlier response and reduces unnecessary field visits
|
This matrix shows why the system should be designed as a complete wind-solar hybrid power architecture rather than a simple combination of panels, turbine, and battery. For irrigation valve control, each reliability variable affects whether irrigation scheduling can remain stable.
Boundary Conditions For Reliable Irrigation Valve Wind-Solar Hybrid Power Operation
The 600W solar, 300W wind, and 400Ah battery hybrid power supply system can support irrigation valve operation when the connected load, environmental conditions, installation method, and maintenance interval remain within the intended design range.
System performance depends on:
✅ Adequate solar exposure at the installation site
✅ Sufficient wind availability for wind generation contribution
✅ Connected load remaining within the system design rating
✅ Battery discharge limits being respected
✅ Enclosure sealing and cable protection being maintained
✅ Solar panel surface not being continuously blocked by dust, shade, or site obstruction
✅ Wind generator installed with suitable clearance and structural stability
✅ Maintenance teams responding to abnormal alerts when required
Configuration should be recalculated if:
✅ Additional devices are added to the system
✅ Load power increases
✅ Backup-day requirements become longer
✅ Solar shading becomes severe
✅ Wind availability is lower than expected
✅ Climate conditions exceed the battery design range
✅ Enclosure sealing or turbine mounting stability is affected
✅ Maintenance interval changes significantly
This boundary condition logic is important because one configuration should not be applied to every irrigation valve project without load and site review. A reliable hybrid power supply system should be selected after confirming device power, valve operation frequency, communication load, local climate, backup days, wind resource, solar exposure, and maintenance conditions.
Project Results: Stable Irrigation Power, Stronger Weather Adaptability, And Lower Maintenance Pressure
The Shandong irrigation valve project improved field power support by replacing high-maintenance traditional battery supply and single-source power limitations with an integrated wind-solar hybrid power supply system.
Improved Power Reliability For Continuous Irrigation Valve Control
After deployment, the system supported 24-hour operation of the irrigation valve equipment.
According to the project application record, irrigation scheduling response remained stable during the implementation period. This helped reduce the previous risk of unstable power supply and irrigation interruption at distributed farmland valve points.
For smart agriculture projects, continuous power is important because irrigation valves must respond according to field water demand, crop growth stage, and water-saving irrigation schedules.
Stronger Adaptability During Wind, Rain, Low Temperature, And High Heat
The system was designed for Shandong farmland environments, including spring wind and dust, summer high temperature, winter low temperature, and continuous cloudy or rainy conditions.
The combination of solar generation, wind generation, wide-temperature LiFePO4 battery storage, waterproof and dustproof enclosure protection, and intelligent controller logic helped reduce power risks caused by single-source energy dependence, dust exposure, temperature variation, and outdoor electrical stress.
According to the project application record, the system operated stably during the observed implementation period and supported irrigation valve operation under multiple weather conditions.
Lower Maintenance Pressure Through Remote Monitoring
Traditional battery-powered valve systems often require periodic field inspection and replacement. For irrigation valve points scattered across large farmland areas, each inspection can require labor, travel time, and coordination with farm operation schedules.
The wind-solar hybrid power supply system reduces dependence on frequent manual battery replacement. Remote monitoring also allows maintenance teams to check photovoltaic power, equipment operation status, and abnormal alerts before sending personnel to the field.
This helps improve maintenance efficiency, reduce unnecessary inspections, and lower operational pressure for distributed smart agriculture projects.
Engineering Value For Smart Agriculture Irrigation And Water-Saving Infrastructure
The Shandong project shows how a 600W solar + 300W wind + 400Ah battery wind-solar hybrid power supply system can support smart agriculture irrigation valve control where grid power is unavailable, weather conditions are variable, and maintenance access is difficult.
For smart agriculture irrigation, stable off-grid power is not only an energy supply issue; it is part of the control reliability foundation for water-saving irrigation infrastructure.
The solution addresses three practical engineering problems:
✅ Power Continuity: supports 24-hour operation of irrigation valve equipment and control devices
✅ Weather Adaptability: improves recovery resilience by combining solar generation, wind generation, and battery storage
✅ Maintenance Efficiency: supports remote monitoring and reduces frequent manual inspection across distributed farmland points
This type of hybrid clean energy solution can also be adapted to other smart agriculture applications, including water-fertilizer integration machines, soil moisture monitoring stations, insect monitoring lamps, farmland IoT gateways, environmental sensors, and distributed irrigation control systems.
By using wind and solar energy, smart agriculture projects can improve energy independence, reduce reliance on traditional battery replacement, and support cleaner agricultural infrastructure. For northern farmland regions, hybrid power can also improve operational resilience during windy seasons, low-sunlight periods, and field maintenance constraints.
Buyer FAQ About Wind-Solar Hybrid Power Supply Systems For Irrigation Valve Projects
Can A Wind-Solar Hybrid Power Supply System Run Irrigation Valves 24 Hours A Day?
Yes, a properly configured wind-solar hybrid power supply system can support 24-hour irrigation valve operation when valve load, controller power, communication load, battery storage, solar recovery, wind recovery, and backup-day requirements are calculated together. Irrigation valves may not operate continuously at peak load, but the control system must remain powered and ready for scheduled commands. Buyers should confirm valve power, operation frequency, controller consumption, communication equipment, site climate, required backup days, and maintenance interval before selecting a configuration.
Why Is A Wind-Solar Hybrid System Useful For Smart Agriculture Irrigation?
A wind-solar hybrid system is useful because farmland power conditions can change with season, weather, and irrigation schedules. Solar generation supports daytime recovery during sunny periods, while wind generation can provide supplementary charging during windy, cloudy, or weak-light conditions. This is especially relevant in regions where single-source solar supply may face limitations during continuous cloudy weather or seasonal low-irradiance periods. For irrigation valve control, hybrid recovery reduces dependence on one energy source and improves the ability to maintain battery reserves for scheduled valve operation.
Is A 600W Solar 300W Wind 400Ah Battery System Suitable For Every Irrigation Valve Project?
No, this configuration should not be treated as universal for every irrigation valve project. Its suitability depends on the actual valve load, controller power demand, communication equipment, operation frequency, local sunlight, wind resource, required backup days, temperature range, enclosure environment, and maintenance interval. A small valve control point may require less capacity, while a site with multiple valves, wireless communication, sensors, or frequent operation may need a different configuration. System sizing should be based on the complete load profile and site conditions.
What Causes Power Failure In Remote Farmland Irrigation Systems?
Common causes include undersized battery capacity, single-source energy dependence, poor wind or solar recovery, dust accumulation, low-temperature battery decline, high-temperature component aging, water ingress, load expansion, and delayed maintenance access. In farmland environments, equipment may face dust, moisture, temperature variation, and long maintenance distances. Another common risk is adding sensors, communication devices, or additional valve loads after installation without recalculating energy demand. Reliable design should combine load analysis, battery autonomy, hybrid recovery, enclosure protection, controller safety, and remote monitoring.
What Information Should Buyers Provide Before Hybrid Power System Sizing?
Buyers should provide the irrigation valve model, valve power consumption, controller power, communication device power, operation frequency, daily runtime, required backup days, site location, sunlight conditions, wind conditions, seasonal temperature range, installation method, and maintenance interval. For smart agriculture projects, it is also useful to confirm whether the system supports only valve control or also sensors, gateways, water-fertilizer integration equipment, or monitoring devices. These details help engineers calculate battery storage, solar generation, wind recovery contribution, controller requirements, and enclosure protection.
How Does Remote Monitoring Reduce Maintenance Pressure For Distributed Farmland Valve Points?
Remote monitoring reduces maintenance pressure by allowing teams to check photovoltaic power, equipment operation status, battery condition, and abnormal alerts before field failure occurs. Irrigation valve points are often distributed across large farmland areas, where manual inspection can require significant travel time and labor. During rainy periods, high heat, or busy farming seasons, unnecessary field visits can increase operating cost. With mobile-side monitoring, maintenance teams can identify charging or battery problems earlier and decide whether a site visit is needed.
Related Smart Agriculture Solar Power Solutions And Remote Farmland Engineering References
The Shandong irrigation valve project belongs to a broader group of smart agriculture and remote farmland applications where grid power is difficult to access, field equipment must operate continuously, and maintenance access may be limited by distance, weather, or crop management schedules. These related engineering references help project buyers compare wind-solar hybrid and off-grid solar power supply systems across irrigation control, soil monitoring, water-fertilizer integration, pest monitoring, and farmland IoT applications.
Core Related Engineering References
Why This Reference Is Related:Smart irrigation valve control requires stable power for scheduled opening, closing, and remote command execution. It is closely related to the Shandong project because both applications depend on uninterrupted valve control for water-saving irrigation.
Engineering Connection:Both applications rely on storage autonomy, hybrid energy recovery, outdoor enclosure protection, controller safety, and remote maintenance visibility under distributed farmland conditions.
Useful For:Smart agriculture integrators, irrigation system contractors, water-saving agriculture projects, farmland automation companies, and agricultural infrastructure buyers.
Why This Reference Is Related:Soil moisture monitoring stations are often deployed across farmland where grid power is unavailable and maintenance access may be limited during farming seasons. These stations support irrigation decisions by providing field moisture data.
Engineering Connection:Both soil moisture monitoring and irrigation valve control depend on stable low-power operation, battery backup, outdoor protection, and remote status visibility for continuous field data collection.
Useful For:Agricultural IoT providers, irrigation planning teams, smart farm operators, environmental monitoring contractors, and system integrators.
Why This Reference Is Related:Water-fertilizer integration equipment may require stable power for pump control, dosing control, sensor communication, and scheduled operation in farmland environments.
Engineering Connection:This application shares the same design logic: load calculation, storage autonomy, outdoor enclosure protection, remote monitoring, and energy recovery must be matched to actual field operation.
Useful For:Smart irrigation contractors, agricultural equipment suppliers, water-fertilizer system integrators, farm operators, and clean energy project buyers.
Extended Smart Agriculture Applications
Why This Reference Is Related:Insect monitoring lamps are often installed in distributed agricultural areas where night operation, outdoor exposure, and field maintenance access affect power reliability.
Engineering Connection:Both insect monitoring and irrigation valve projects require reliable off-grid power, battery backup, weather-resistant enclosure design, and remote maintenance planning.
Useful For:Plant protection stations, agricultural research teams, pest monitoring solution providers, smart agriculture contractors, and government farming projects.
Why This Reference Is Related:Farmland IoT gateways often support communication between sensors, controllers, valves, and cloud platforms. If gateway power fails, multiple connected devices may lose data transmission or command response.
Engineering Connection:The shared design priority is continuous off-grid operation through load calculation, storage autonomy, solar or hybrid recovery, environmental protection, and remote energy monitoring.
Useful For:IoT platform providers, smart agriculture system integrators, farm automation companies, irrigation control contractors, and agricultural monitoring project buyers.
Engineering Summary: Why Storage-First Hybrid Power Design Matters For Irrigation Valve Control
Reliable off-grid power for irrigation valve control should begin with storage autonomy, then match solar recovery, wind recovery, environmental protection, controller safety, and maintenance access according to actual field conditions. For Shandong smart agriculture infrastructure, the Kongfar 600W solar + 300W wind + 400Ah battery system demonstrates how hybrid clean energy can support irrigation valve operation under wind, dust, low temperature, high heat, rainfall, and distributed farmland maintenance constraints.
This project also shows that irrigation valve power should not be evaluated only by photovoltaic wattage or wind generator capacity. Long-term reliability depends on load calculation, battery backup duration, hybrid recovery capability, outdoor enclosure protection, controller coordination, and remote monitoring working together as one system.
Engineering & Procurement Contact For Irrigation Valve Wind-Solar Hybrid Power Systems
Irrigation valve power systems should not be selected only by solar panel wattage or wind generator capacity. A reliable configuration needs valve load calculation, battery autonomy review, hybrid recovery assessment, outdoor protection design, and maintenance access planning.
For smart agriculture irrigation projects, Kongfar can support engineering consultation for:
✅ Irrigation valve and controller load calculation
✅ Backup-day modeling for water-saving irrigation continuity
✅ Solar and wind recovery assessment for farmland environments
✅ Dust, high-temperature, low-temperature, and enclosure protection strategy
✅ Remote energy monitoring design for scattered farmland valve points
✅ Custom wind-solar hybrid power configuration for unattended smart agriculture equipment
Project buyers can prepare the following information before consultation:
✅ Connected device list
✅ Valve model and power consumption
✅ Controller and communication device power
✅ Device input voltage
✅ Daily runtime and valve operation frequency
✅ Required backup days
✅ Site location and seasonal climate conditions
✅ Solar exposure and wind conditions
✅ Installation method
✅ Maintenance interval
✅ Remote monitoring requirement
Email:tony@kongfar.com
Website:https://www.kongfar.comKongfar provides engineering-focused solar power supply systems and wind-solar hybrid power supply systems for smart agriculture, irrigation valve control, water conservancy monitoring, outdoor IoT, remote CCTV, telecom, and unattended field infrastructure applications.
English
Deutsch
