⚡ Off-Grid Solar Power Systems for Outdoor PoE Switches: Reliable 48V Energy for Edge Networks

Outdoor edge networks increasingly rely on PoE switches to power IP cameras, wireless APs, IoT sensors, and industrial controllers. Extending grid AC to every cabinet is costly and slow, while multiple AC→DC conversions add failure points. A cabinet designed around 48V DC with MPPT charging and LiFePO₄ storage delivers the reliability, safety, and scalability that modern projects need—especially when those switches feed bold keywords such as solar-powered CCTV systems, an integrated solar surveillance system, or a solar security camera system built from off-grid solar power kits and solar energy kits for CCTV. For public buyers and integrators, a well-specified solar camera power system becomes the backbone of solar powered security systems at the edge.

🧭 Application Scenarios Where 48V Solar + PoE Excels

✅ Smart transportation corridors that need continuous video and telemetry for solar powered surveillance for highways
✅ Industrial security along oil & gas corridors and remote perimeters—classic solar CCTV for remote areas use cases
✅ Smart agriculture blocks (orchards, irrigation, livestock) that benefit from a solar power solution for farms
✅ Temporary/build sites and events requiring off-grid solar kits for construction sites
✅ Environmental stations (hydrology, weather, forest risk) that can host a solar camera system for forest fire monitoring
✅ Rural broadband and road-side cabinets using solar energy kits for telecom towers to hold radios and backhaul

🧩 System Architecture: Direct-DC, PoE-First

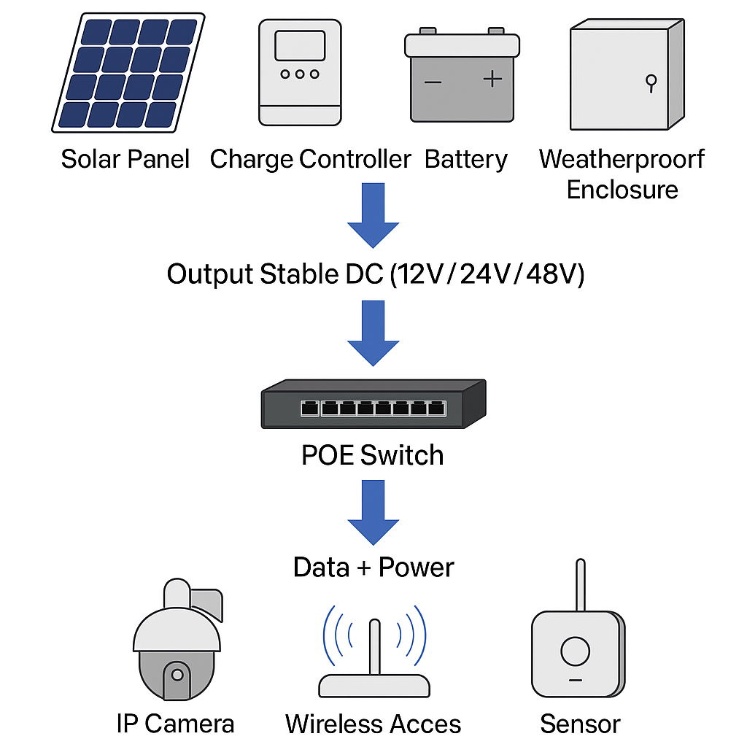

✅ Solar array (18–21% mono) → MPPT (48V output, telemetry) → LiFePO₄ battery (BMS) → 48V DC bus → PoE switch (PSE, 802.3af/at/bt) → PDs (cameras/AP/sensors)
✅ Favor a PSE output window of 52–57V to preserve margin against long cable runs and cold-start inrush
✅ Industrial cabinet (IP65/66), fused DC distribution, door tamper, temperature probes, and service disconnects
✅ When the PDs are cameras, the same cabinet powers a solar CCTV system or a packaged solar CCTV kit—in essence an all-in-one solar camera power solution with a solar CCTV system with MPPT controller

🔋 Power Subsystem (MPPT + LiFePO₄) With Worst-Month Design

✅ Use “worst-month” peak sun hours (PSH) for array sizing; add dust/temperature derating (1.2–1.35)
✅ Select LiFePO₄ (safer chemistry, long cycle life); pair BMS with low-temp charge protection
✅ Plan for 3–5 days autonomy; confirm C-rate for peak loads and night IR draw (for camera-heavy sites)
✅ This is how you build long battery autonomy solar camera kits that keep PoE live through storms

🧮 How to Choose a Solar Power Kit for Camera & PoE Loads

✅ Sum continuous + peak PoE draw (per-port 802.3af/at/bt) and apply a realistic concurrency factor
✅ Account for cable loss (Vdrop = I×R) and conductor gauge (Cat6/Cat6a, 23–24 AWG, shielded outdoor UV-rated)
✅ Daily Wh × autonomy ÷ (48V × DoD × η) → Ah; worst-month energy ÷ PSH ÷ derate → kWp
✅ If your core load is cameras, you’re effectively engineering the best solar CCTV system for outdoor use, not just a PoE box

🛡️ Electrical & Mechanical Hardening

✅ DC direct feed (no inverter) for higher MTBF and simpler spares
✅ SPD on DC and data lines; specify class and nominal discharge current; bond all grounds; target <4 Ω earth resistance
✅ IP66 cabinet, UV-stable materials; IP66 solar camera power system for outdoor compliance if cameras are integrated
✅ Thermal design: negative-pressure ducting or heat exchangers for hot zones; heaters/insulation for cold zones
✅ Cable management with drip loops and proper bend radius; labeled harnessing for plug and play solar CCTV system serviceability

🛰️ Backhaul, NMS & Security

✅ SNMP v2/v3 for PSE telemetry (per-port power/temp/faults), Modbus for MPPT/BMS; MQTT/HTTPS northbound to the cloud
✅ VPN/TLS, private APN, ACL/VLAN segmentation; edge buffering (SD/NVR) for weak-signal windows
✅ This turns the cabinet into a manageable node for solar CCTV kits for government projects and enterprise SOCs

🧪 Power Sizing & PoE Budgeting—Worked Example

✅ Load: eight 802.3bt PTZs @ 60 W → 480 W peak
✅ Concurrency: 0.7 → 336 W continuous
✅ Line loss +10% → ~370 W design basis
✅ Battery: (370 W × 24 h) / (48 V × 0.8 DoD × 0.9 η) ≈ 257 Ah → choose 48 V/300 Ah LiFePO₄ (battery powered solar CCTV with LiFePO₄)
✅ Array: daily energy ≈ 8.88 kWh; PSH (worst month) = 4 h; derate 1.3 → ~2.88 kWp → round to 3.0 kWp
✅ With night codec tuning (H.265/Smart) and IR management, you retain headroom and extend autonomy

📊 Cost & ROI—What Drives TCO for Solar-Powered Security Systems

✅ CapEx: panel area, battery capacity, PSE class, pole works, SPD/grounding, thermal package
✅ OpEx: SIM data, periodic cleaning, annual grounding re-tests
✅ No trenching, faster permitting, scalable node-by-node—why the cost of solar-powered security systems often beats grid extension

❓ Frequently Asked Questions (Comparative Triggers)

✅ Does solar CCTV work at night? Yes—LiFePO₄ sized for IR plus smart codecs; the difference between solar CCTV and wired CCTV after dark is energy budgeting, not quality.
✅ What battery is best for solar CCTV camera? LiFePO₄ for safety, life, and temperature performance.
✅ How to choose a solar power kit for camera? Start with total Wh/day, autonomy days, PSH (worst month), and derating; then confirm 48 V PSE budget and cable loss.
✅ Solar vs hybrid surveillance systems? Hybrid (solar + AC) helps where AC is intermittent; pure off-grid wins in remote builds.
✅ How to install solar CCTV kits? Pre-wired harnesses, labeled DC buses, and scripted NMS enrollment cut install times drastically.

🏗️ Cross-Industry Designs Reused at the Edge

✅ The same 48 V DC spine powers orchard blocks, pipeline ROWs, roadside cabinets, and job-site towers; designs scale into industrial-grade solar kits for surveillance
✅ Packages can ship as OEM & custom-built solar kits or turnkey all-in-one solar camera power solutions, ready for harsh weather as an IP66 waterproof solar security solution

🧱 Example Bill-of-Design (What “Good” Looks Like)

✅ 3.0 kWp mono array, dual-MPPT trackers; 48 V/300 Ah LiFePO₄ bank
✅ PSE 802.3af/at/bt, total budget ≥ 600 W; per-port caps and thermal telemetry
✅ DC+data SPDs, bonded ground bar, earth < 4 Ω; door tamper + temp sensors
✅ Cabinet IP66, sunshield, negative-pressure fan train; winter kits where needed
✅ SNMP/Modbus points mapped to NMS; MQTT northbound for cloud analytics
✅ This profile underpins scalable solar surveillance systems with repeatable O&M

🧠 Why Many Teams Standardize on Kits

✅ Repeatable parts = shorter lead times; fewer surprises in the field
✅ Easier to benchmark a CE-certified solar power kit or a bundled solar power kits line against multiple sites
✅ For camera-heavy nodes, kits double as a packaged solar CCTV system or “solar powered camera kits China” SKU for export

🤝 Who We Work Best With

✅ Public safety teams rolling out solar CCTV kits for government projects
✅ Transport and utilities deploying solar CCTV system nodes along corridors
✅ Agriculture and rural broadband that prefer wireless solar CCTV system for rural architectures
✅ Distributors needing private-label from a solar CCTV system manufacturer or solar CCTV OEM factory

📦 Commercial Options (Fast to Deploy)

✅ Pre-wired PoE cabinet only (bring your own PSE/PD)
✅ Camera-centric bundle—cabinet + PSE + cameras + mounts (true solar CCTV system)
✅ Tower bundle with radios for LOS backhaul (leveraging solar energy kits for telecom towers)
✅ Any option can ship via solar CCTV system wholesale programs

🌍 Call to Action—Design Your Next Edge Node Right

Choose a partner who can design, simulate, and ship reliably: a solar CCTV system manufacturer and solar power kit manufacturer that also acts as a solar power kits exporter China. Whether you need orchard-grade video, a pipeline perimeter, or highway smart poles, we’ll deliver OEM & custom-built solar kits tuned to your climate and load. Ask for a worst-month energy model, a PSE budget plan, and a commissioning checklist—then scale with confidence.

✅ Request custom branding from a China solar power cctv kit system factory

Our solar-powered CCTV systems and off-grid solar power kits provide reliable power for outdoor PoE switches across applications such as smart highways, telecom towers, and rural surveillance. By integrating high-efficiency panels, MPPT charge controllers, and LiFePO4 battery storage, these kits ensure continuous energy for cameras and networking devices in off-grid environments.

Engineered for long-distance transmission and multi-device connectivity, our solar surveillance systems support PoE cameras, routers, and sensors within a single IP66-rated, plug-and-play cabinet. As a custom solar powered CCTV system manufacturer and solar power kit manufacturer in China, we deliver OEM solutions that meet industrial-grade standards—tested for harsh weather, multi-day autonomy, and seamless network integration.
