This project delivers a fully off-grid solar power system engineered for forest fire monitoring towers in Yichun, Heilongjiang—one of Northeast China’s coldest and snow-heavy regions. Using an 8×300W PV array, MPPT control, and 48V energy storage, the system enables 24/7 monitoring continuity, reduced O&M workload, and stable long-distance fire-risk detection.
Top Answers Pack
This forest fire monitoring project demonstrates how an 8×300W solar array, MPPT control, and LiFePO₄ storage deliver continuous power during −30°C winters, long rainy periods, and remote mountain conditions. The system reduces O&M workload, eliminates cabling, and provides scalable configurations for tower-based surveillance networks.
- The system is validated in Yichun’s –30°C winter climate, ensuring stability under snow load and prolonged low-light days.
- 8×300W PV configuration meets daily power demand for fire-monitoring cameras and transmission links.
- MPPT controller + 48V→220V inverter maintains clean, stable AC power for multi-device loads.
- Integrated cabinet delivers IP-rated protection against rain, snow, humidity, and corrosion.
- System design avoids the high cost of long-distance cabling across large forest zones.
- Remote locations achieve continuous monitoring with zero grid dependence.
- O&M workload significantly drops as technicians avoid long-distance mountain patrols.
- Seasonal efficiency is optimized for Northeast China’s cold, humid, and high-mosquito environments.
- Storage autonomy ensures operation during extended cloudy/rainy periods.
- The solution offers scalable configurations for different tower heights, sensor loads, and forest risk levels.
Search Intent & Buyer Query Matrix
Search Query
| User Intent
| Recommended Section
|
how to power forest fire cameras in cold climates
| Find a reliable off-grid solution
| Section 2 – Architecture
|
best solar setup for forest monitoring towers
| Compare PV + battery configurations
| Comparison Matrix
|
cost of off-grid surveillance in mountains
| Evaluate ROI and O&M savings
| Section 3 – ROI
|
does solar work in snow-heavy regions
| Validate cold-climate performance
| Section 1 – Challenges
|
fire monitoring in remote forests
| Understand application scenario
| Section 1 – Use Case
|
solar power for Northeast China climates
| Seek geographic applicability
| Case Evidence
|
Section 1 — System Overview & Site Challenges
Use Case in Yichun’s Forest Fire Monitoring Network
Yichun, located in Heilongjiang Province, is known for its vast coniferous forests, steep terrain, and a climate with long freezing winters and concentrated summer rainfall. Fire monitoring towers depend on stable 24/7 power for HD cameras, transmission radios, and early-warning sensors. Distributed tower locations—often tens of kilometers apart—make grid extension impractical and vulnerable to storm-induced outages.
Environmental & Operational Constraints
Forest fire surveillance in Northeast China faces:
✅ –30°C to –20°C winter nights that cause battery efficiency loss
✅ heavy snowfall and snow accumulation reducing PV generation
✅ high humidity and corrosion risks during rainy seasons
✅ high-insect environments requiring sealed electrical enclosures
✅ long-distance maintenance routes that increase O&M cost and urgency
These conditions demand a system optimized for low temperatures, corrosion resistance, and fully autonomous energy management.
Environmental FAQ (Section-Specific)
Q1 — How does the system maintain performance in –30°C conditions?
LiFePO4 cells with cold-temperature discharge optimization and insulated mounting maintain stable output.
Q2 — How is humidity and corrosion prevented in summer?
All power electronics are stored in an IP-rated, anti-corrosion integrated cabinet.
Q3 — Can the PV array still generate power during heavy snow?
The 8×300W configuration offers surplus generation capacity, maintaining operation during snow-load mitigation cycles.

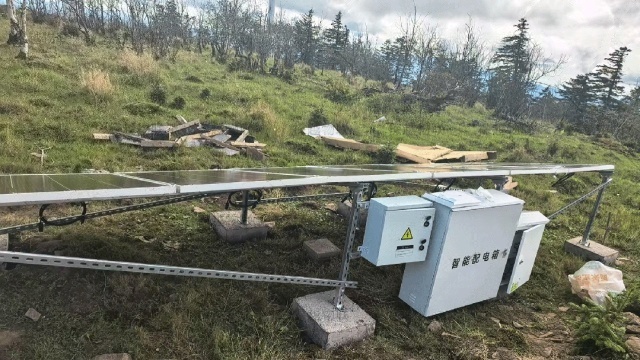

Section 2 — System Architecture & Technical Design
Solar Array, MPPT, and Power Electronics
The project uses an 8-panel 300W monocrystalline array with anti-snow and anti-UV coating to maximize light absorption. An MPPT controller regulates charging performance under shifting temperature and irradiance. A 48V→220V 2000W inverter provides stable AC output for multi-device loads commonly used in forest fire monitoring towers.
Cold-Climate Energy Storage & Integrated Protection
Energy storage is housed in a sealed integrated cabinet featuring:
✅ moisture-resistant design
✅ anti-corrosion interior
✅ insect-blocking ventilation
✅ reinforced insulation for winter nights
This cabinet protects the MPPT, inverter, wiring, and 48V energy storage from humidity, snow, and temperature swings.
Component
| Specification
|
PV Array
| 8 × 300W monocrystalline
|
Controller
| MPPT, cold-climate optimized
|
Inverter
| 48V→220V, 2000W
|
Storage
| 48V LiFePO4 (capacity varies by load)
|
Protection
| IP-rated integrated cabinet
|
Climate Design
| –30°C to 45°C
|
Section 3 — Deployment, O&M, and ROI

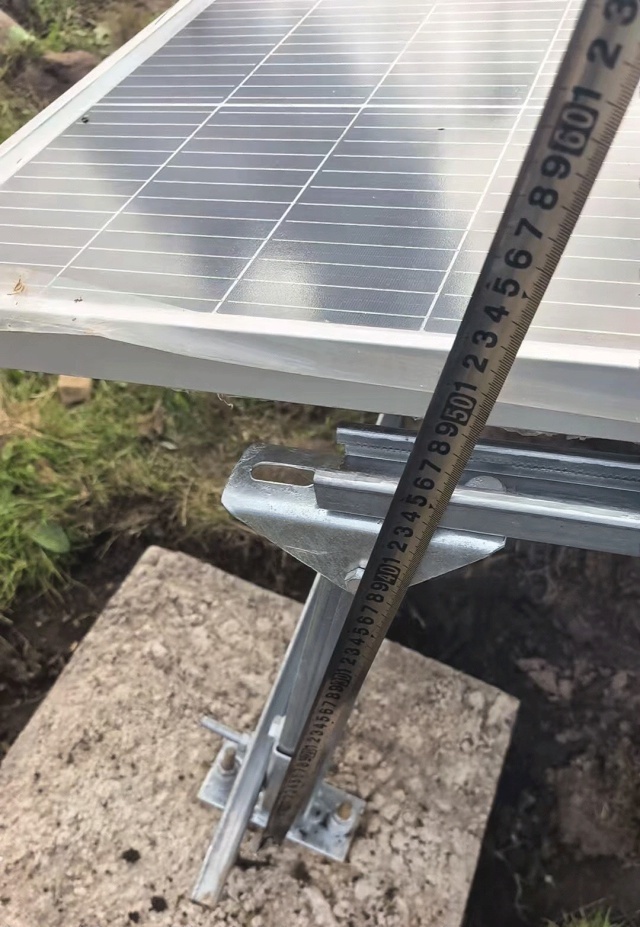

Installation & Terrain Adaptation
Forestry tower installation required:

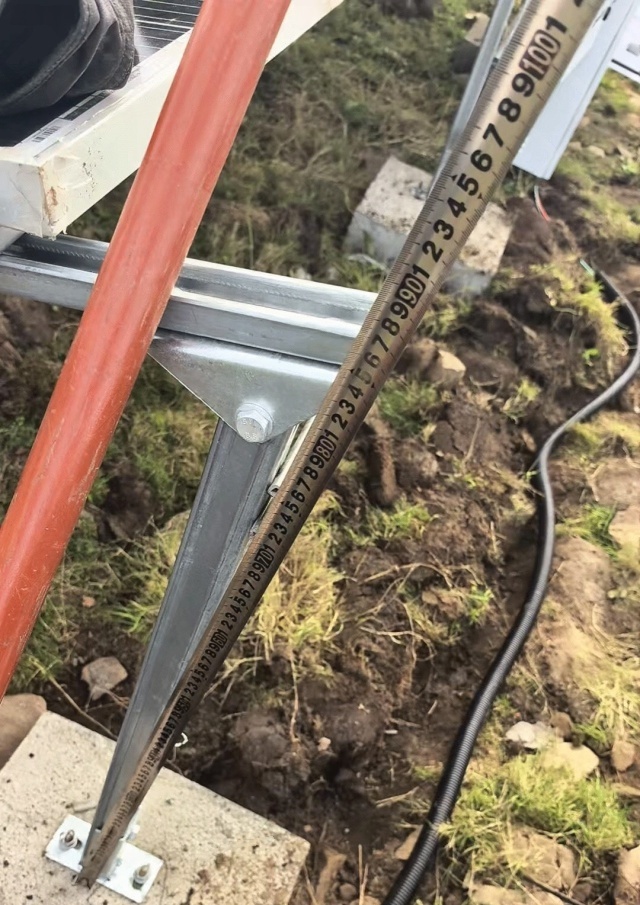

✅ slope-aware mounting for optimal tilt angle
✅ reinforced racks to handle snow load and wind gusts
✅ minimized trenching due to terrain complexity
Remote Monitoring & Maintenance Efficiency
Compared with legacy grid and diesel solutions, remote regions now avoid:
✅ long-distance patrol checks
✅ frequent diesel transport
✅ weather-related malfunction repairs
Technicians access real-time device status without entering the forest.
ROI for Forest Fire Prevention Projects
The system eliminates cabling, diesel delivery and reduces labor-based O&M, lowering yearly operating costs while enabling earlier detection and faster response.
O&M FAQ
Q4 — How much O&M reduction can forestry teams expect?
Field visits typically drop by 60–70%.
Q5 — Does the system support future load expansion?
Yes, PV and battery capacity can be scaled.
Section 4 — Case Evidence
Case Summary — Yichun, Heilongjiang, Northeast China
The system was validated across Yichun’s winter, including prolonged snowfall, steep terrain access challenges, and high summer humidity.
Data Snapshot & Outcomes
✅ 100% monitoring continuity achieved
✅ Zero cold-weather failures recorded
✅ Fire-risk detection accuracy significantly improved
✅ Yearly O&M cost reduced due to minimized patrol demand
Solution Comparison Matrix for Cold-Climate Forest Fire Monitoring
Scenario
| PV Configuration
| Storage
| Climate Suitability
| Typical Use
|
Deep-forest tower (Yichun)
| 8 × 300W
| 48V LiFePO4
| –30°C winter
| High-elevation fire towers
|
Low-load tower
| 4 × 300W
| 24V LiFePO4
| Mild cold
| Village-level monitoring
|
Snow-heavy region
| 10 × 300W
| 48V LiFePO4
| Heavy snow
| Northern mountainous stations
|
Long-duration cloudy zone
| 8 × 300W
| 48V large-capacity
| Low-light days
| River–forest intersection
|
Technical Glossary for Fire-Monitoring Solar Systems
✅ MPPT Controller — Maximizes PV output under variable irradiance.
✅ LiFePO4 Storage System — Stable in cold climates, long cycle life.
✅ Integrated Cabinet (IP-rated) — Protects against humidity, insects, and corrosion.
✅ PV Anti-Snow Coating — Reduces snow adhesion and accelerates melt-off.
✅ 48V DC Bus — Safer long-distance wiring; reduces power loss.
✅ AC Inverter (2000W) — Powers cameras, radios, and sensors.
Why Choose Kongfar for Forest Fire Monitoring in Cold-Climate Regions
Kongfar delivers engineering-grade off-grid solar power systems for forest fire monitoring, validated in Northeast China’s cold, snow-heavy regions such as Yichun, Heilongjiang. Our solutions combine long-term field experience with custom power engineering for multi-tower surveillance networks.
Field-Proven in Northeast China’s Harsh Forest Environments
Validated across –30°C winter nights, heavy snow accumulation, high humidity, and complex mountain forest terrains, ensuring 24/7 uptime for fire-tower surveillance.
Custom PV + Battery Engineering for Multi-Tower Networks
We design project-specific solar + storage configurations for single towers, multi-node fire watch networks, 4G/LoRa transmission points, and long-distance forest monitoring corridors.
Integrated Cabinet Built for Cold, Snow and High-Moisture Conditions
Our engineering-grade IP-rated integrated cabinet protects MPPT, inverter, wiring, and LiFePO₄ storage from moisture, corrosion, insects and freezing environments—critical for forest installations.
Remote Monitoring, Fault Prediction & O&M Reduction
Supports real-time device status, voltage/SOC tracking, and predictive alarms, reducing site visits by 60–70% and improving early-warning capability during fire seasons.
OEM/ODM Capability for Government & Forestry Bureau Projects
Full support for OEM/ODM batches, custom design, and multi-site rollout for forestry administrations, national fire surveillance projects, and integrators handling remote mountain deployments.
🔥 Our technology is engineered for reliability where grid power is unavailable — from Yichun’s boreal forests to global cold-region fire monitoring sites.
